Rear Trailing Arms Defender, Disco1, RRC HD CRANKED, Blue, GL1074

£192.00 inc. VAT

6 in stock

Description

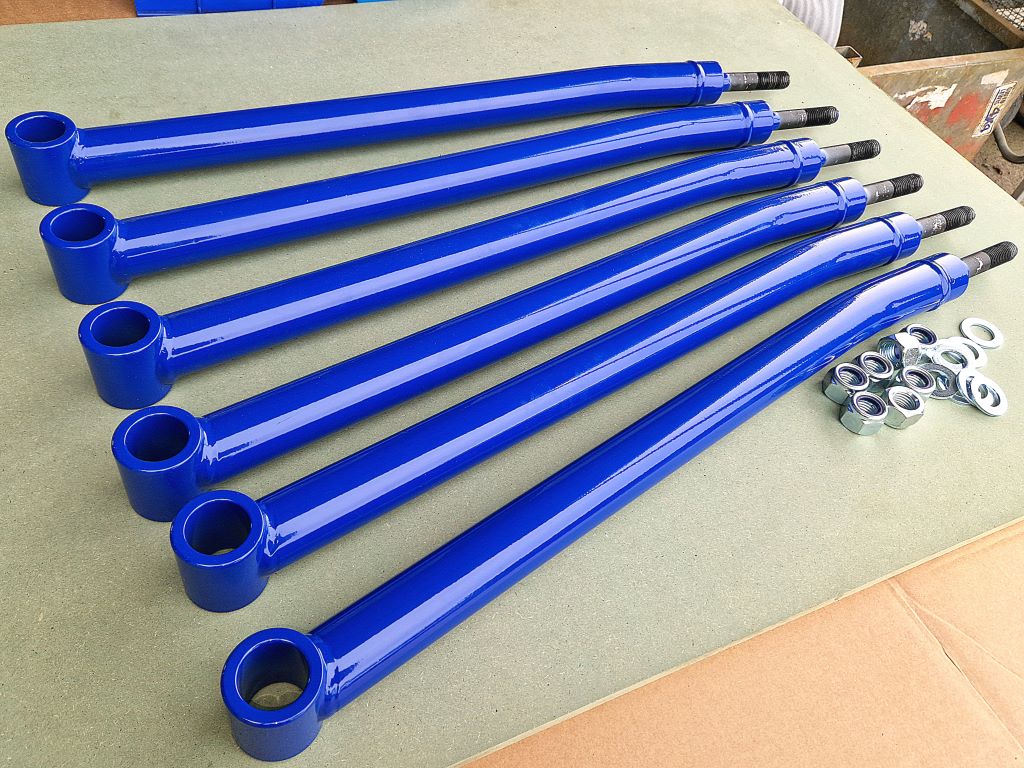

1 x Pair Rear CRANKED Trailing Arms Extra Heavy Duty powder coated BLUE.

Part Number:- GL1074, Rear Trailing Arms Defender, Disco1, RRC HD CRANKED, Blue

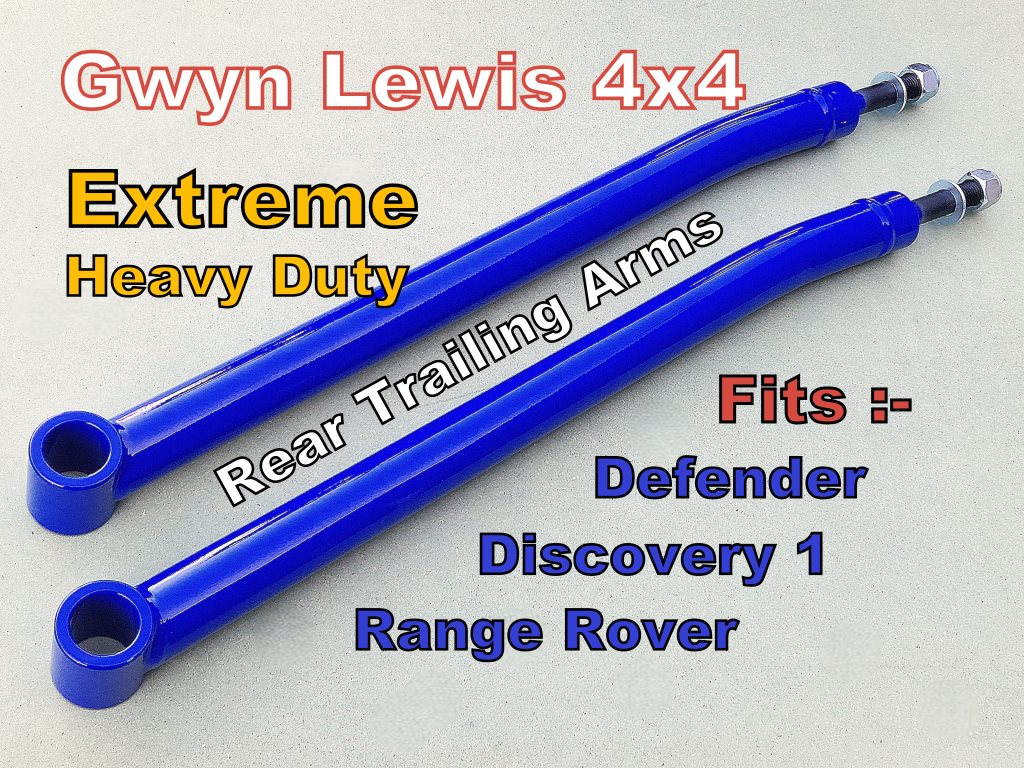

Fits:- Defender 90/110/130, Discovery 1, RRc, standard to 4″ suspension lifts.

Manufacturer:- Gwyn Lewis 4×4.

Weight:- 12.5KG

*NOTE* These are Powder Coated BLUE and are CRANKED.

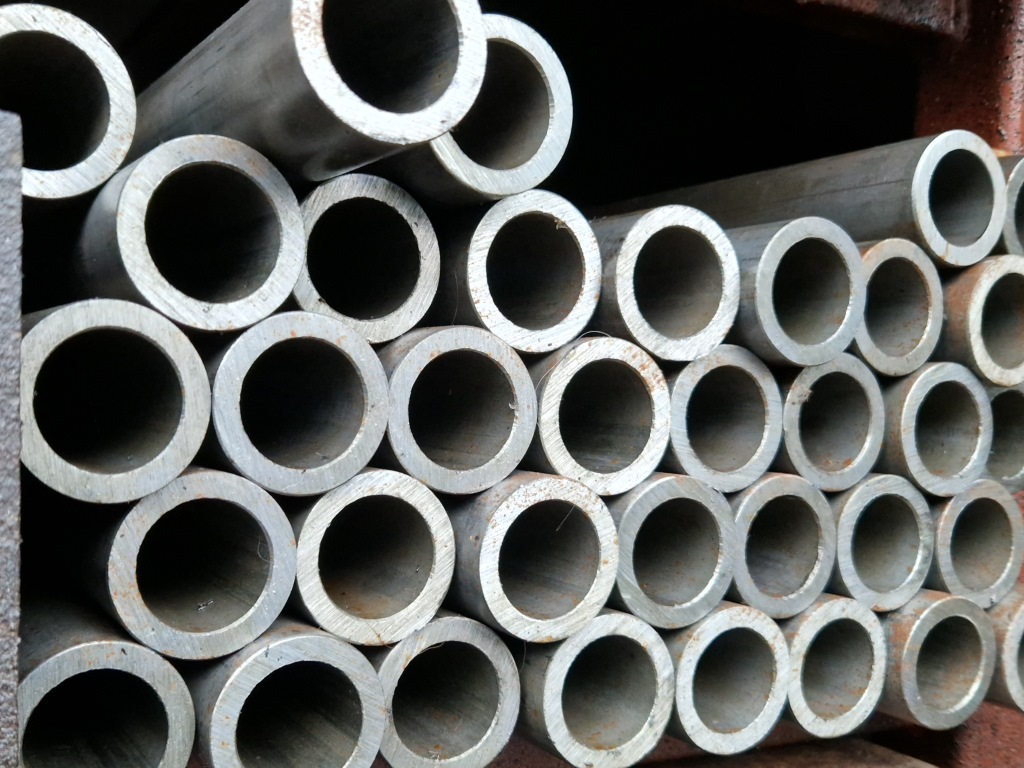

Cranked rear trailing arms are a must have for any Land Rover that is used off road.  Standard arms are not strong enough to cope with all the axle and suspension twisting. These are probably the strongest rear arms you can get at 12.5Kg a pair, using 43mm x 5mm wall tube on the outside and 28mm x 3.5mm wall on the inside, these arms are sand blasted and double powder coated 1 primer and 2 top coat Blue.

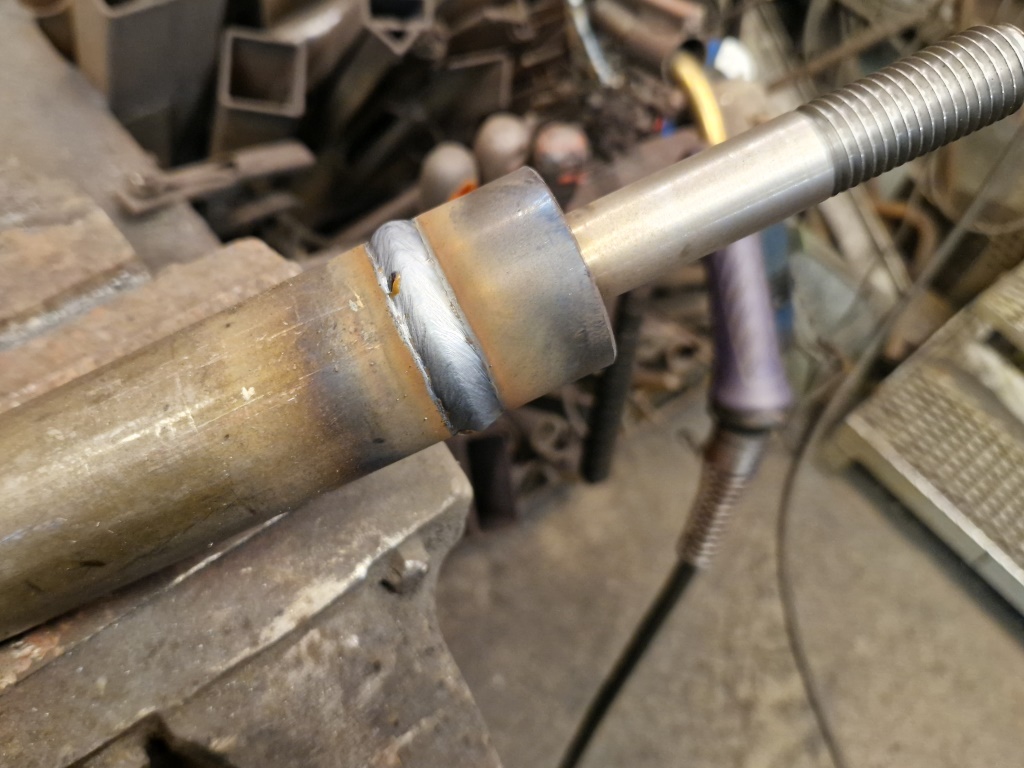

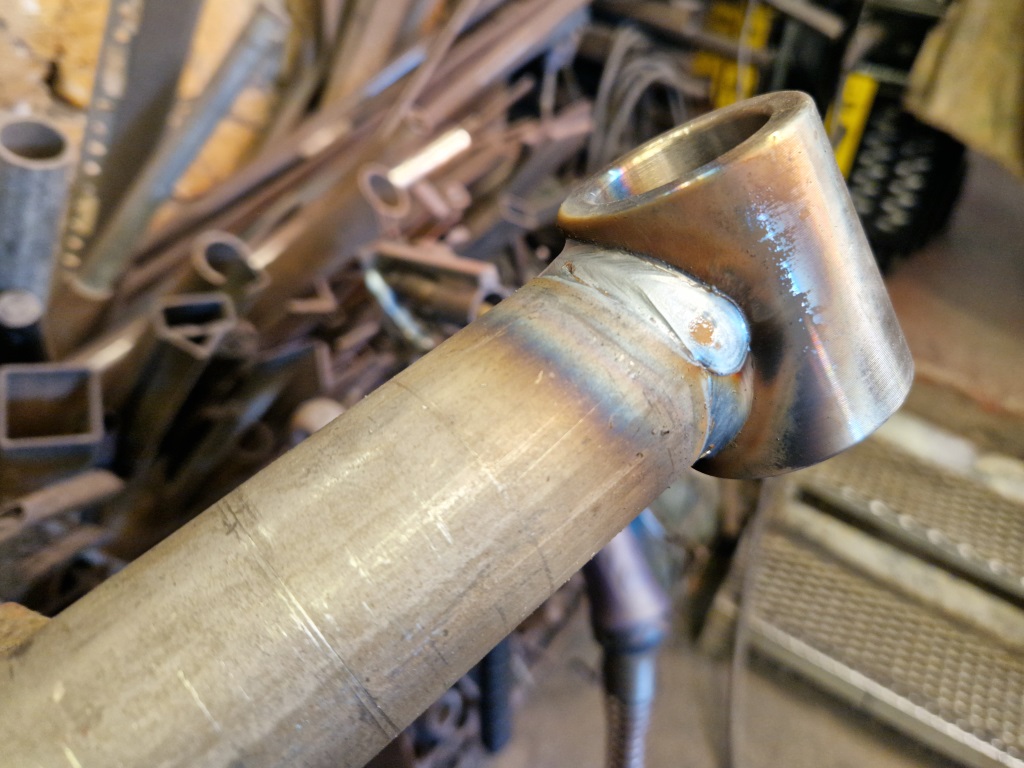

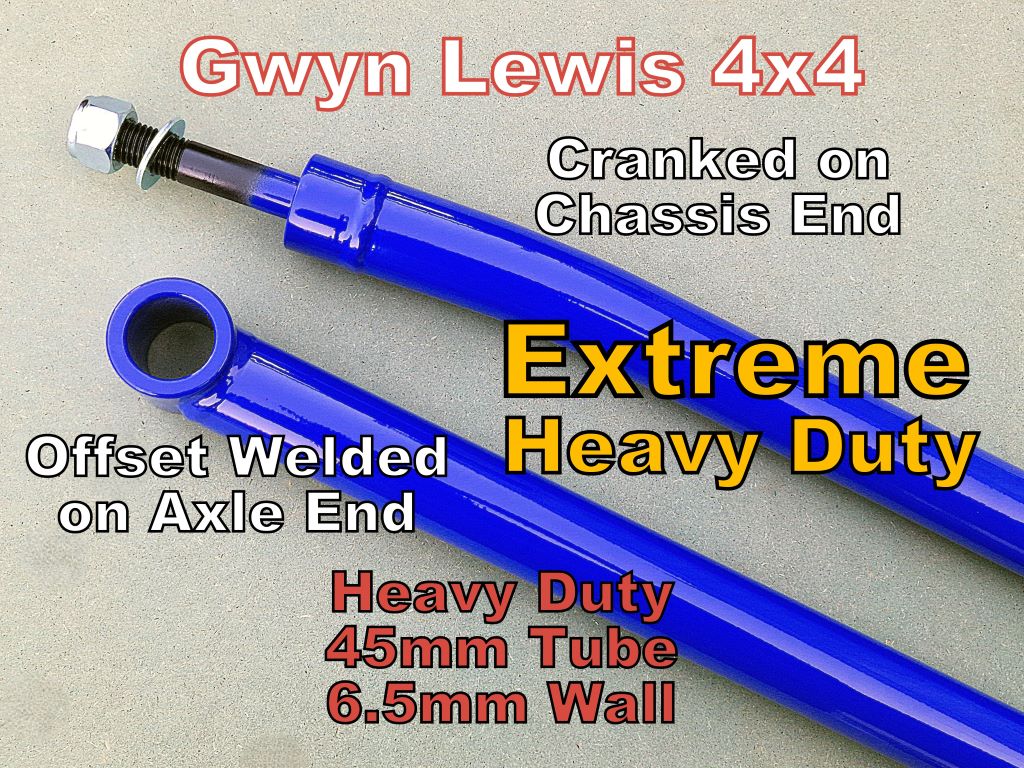

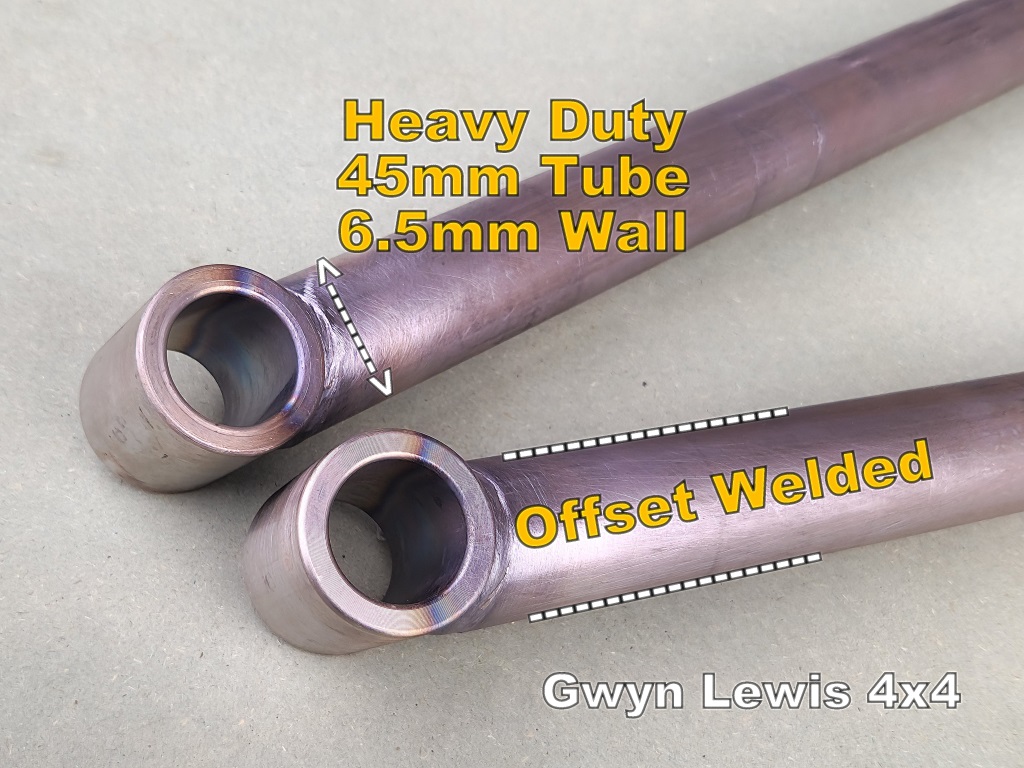

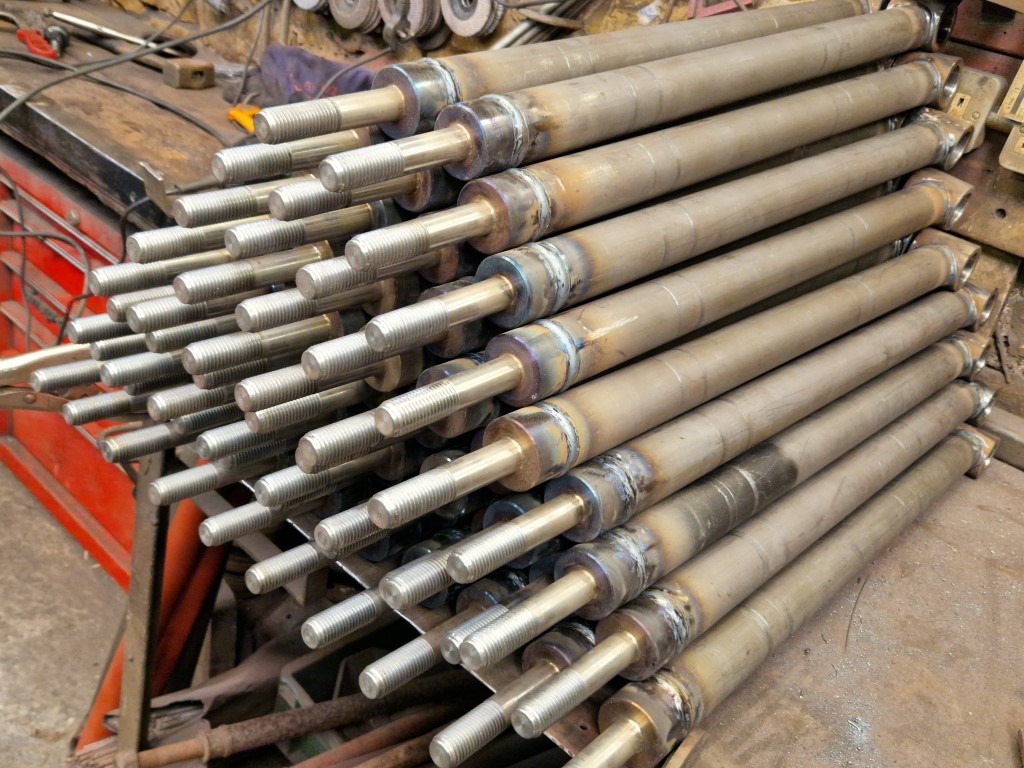

They are twin wall, 43mm O/D heavy duty 5mm steel tube and have a cranked end to improve articulation, they come complete with the bush in the axle end and a new nut on the chassis end, the axle end is offset welded to stop the arm fouling the axle mounting on full suspension dropout, suitable for standard to 4 inch suspension lifts.

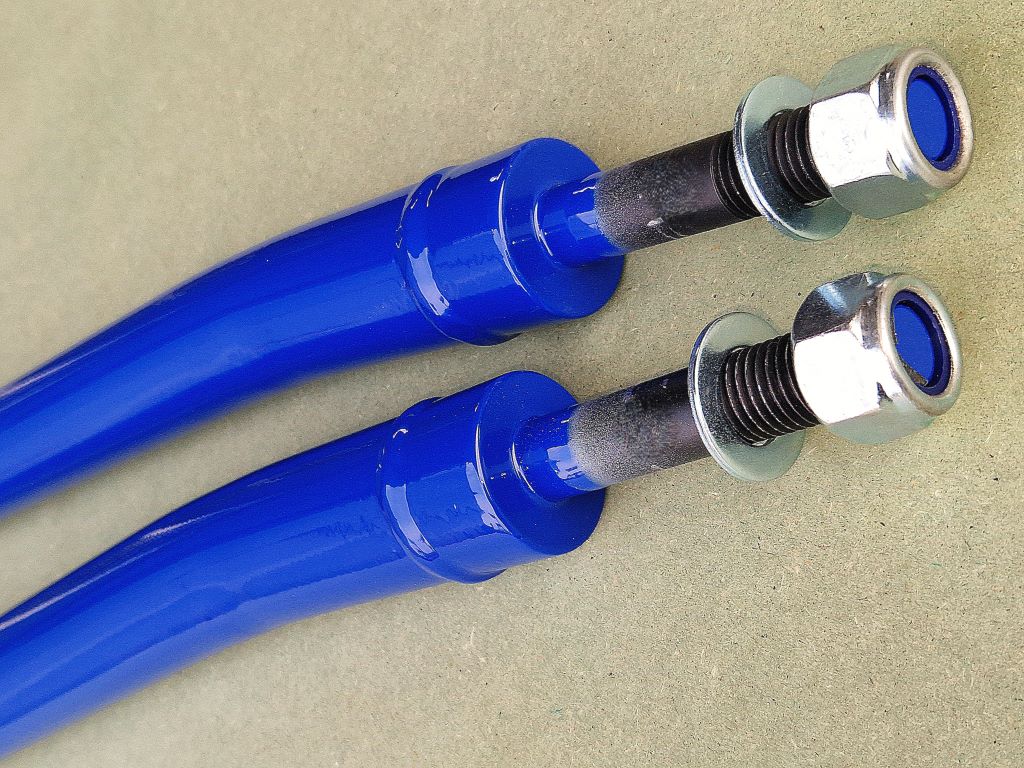

On older RRc you will require a chassis bush as the older ones had imperial threads and the bush has a smaller hole. If you are unsure the older ones have a 24mm nut on the chassis end, ours are metric M20 thread and a 30mm spanner fits the nut on the chassis end. Most rear arms are metric.

Additional information

Weight 12.5 kg
